Brand: C.raftweld · Stürmer Maschinen, Germany

Laser welding and cleaning machine Craft-Laser 1500 S, 230 V

Article no. 1390015.2Laser welding machines

Method
laser welding and laser cleaning
Laser source
RAYCUS, single-mode, 25 µm
Output power
1.5 kW
Setting range
5 – 1500 W
Cooling
air-cooled
Wobble
0 – 5 mm

Previous price:€19,080−45%

€10,494incl. VAT

BGN 20,524.48

Offer

The offer price is valid until 31 October 2026 inclusive. The machine you keep putting off

If the machine is not in the showroom, the delivery time is 7 working days. We confirm availability when we accept the order. Delivery times

Call

Advice: +359 882 477 388

Technical sheet (PDF)

Buy in instalments

  • Buy in instalments with tbi bank

    Online application, approval by the bank, contract.

  • UniCredit consumer financing

    A purchase loan through UniCredit Consumer Financing.

  • Official importer of Stürmer Maschinen
  • Warranty and out-of-warranty service
  • Delivery by Pigeon Express to an address or office
  • Technical experts at your disposal

Technical specifications

Basic Features
Methodlaser welding and laser cleaning
Laser sourceRAYCUS, single-mode, 25 µm
Output power1.5 kW
Setting range5 – 1500 W
Coolingair-cooled
Wobble0 – 5 mm
Laser cleaning widthup to 100 mm, with autofocus
Laser wavelength1080 ± 10 nm
Laser class4
Efficiency30 %
Welding
Weldable thickness, steel0.8 – 6.0 mm
Weldable thickness, stainless steel0.8 – 6.0 mm
Weldable thickness, aluminium0.8 – 4.0 mm
Weldable wires, steel0.6 – 1.6 mm
Weldable wires, stainless steel0.6 – 1.6 mm
Weldable wires, aluminium1.0 – 1.6 mm
Wire feed unit4 rollers
Wire feed speed0.25 – 6 m/min
Electrical Data
Supply voltage230 V
Mains frequency50 Hz
Power input4.8 kW
Idle power consumption< 70 W
Dimensions and weights
Length approx.750 mm
Width/depth approx.600 mm
Height approx.1000 mm
Weight of the power source53 kg
Weight of the wire feed case11.5 kg
Torch weight approx.680 g
Hose package length10 m
Total weight approx.130 kg
Other features
Two machines in onelaser welding and laser cleaning of paint, rust and scale
Set up in three stepsthe machine sets power, wire feed, wobble width and frequency itself

Features

  • Welds steel, stainless steel, aluminium and brass
  • RAYCUS single-mode laser source (25 µm), air-cooled
  • Little distortion and little heat in the workpiece, even with material under 1 mm
  • Laser cleaning with a scan width up to 100 mm and autofocus

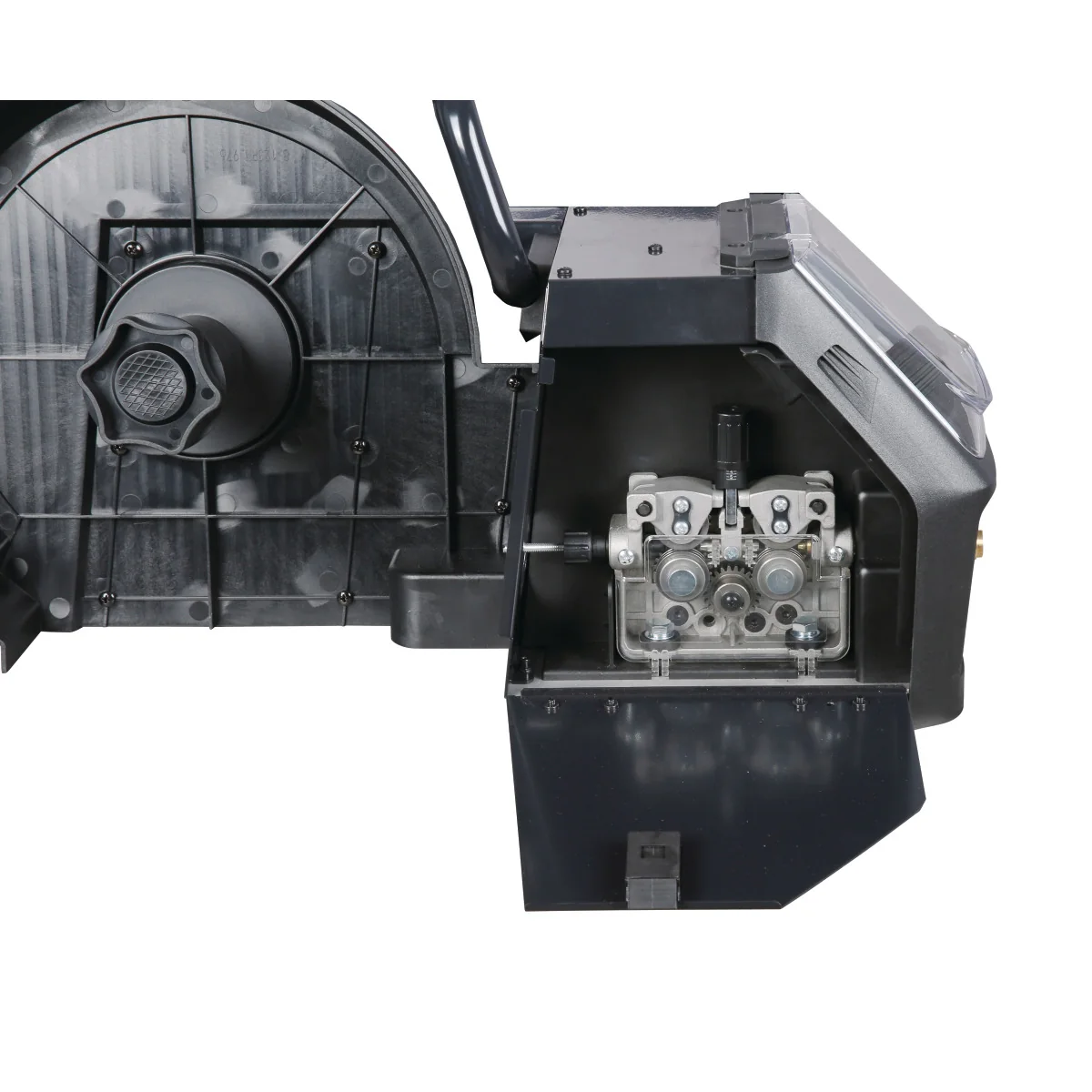

  • Automatic 4-roller wire feed; wire feed switch on the torch

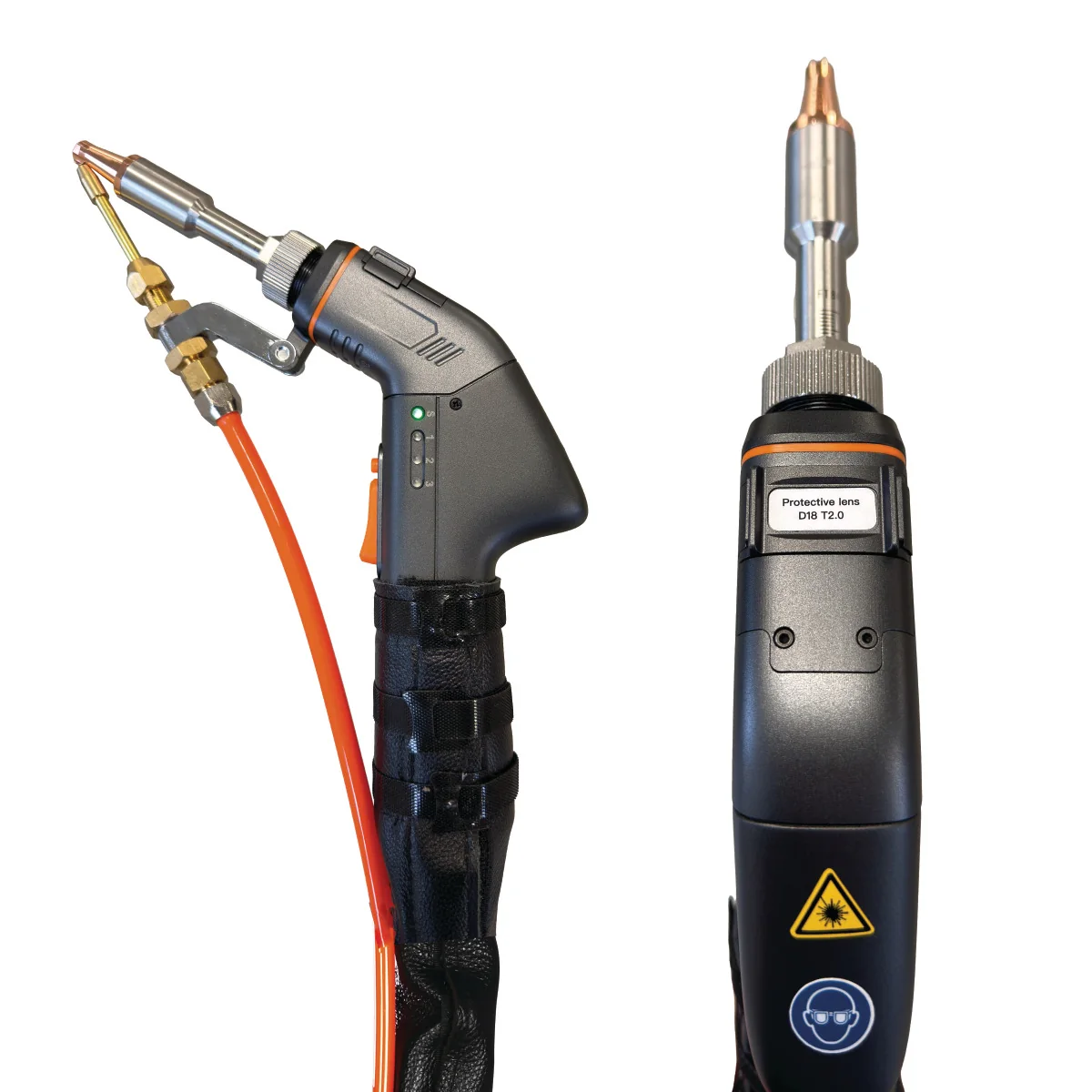

  • Light torch — about 680 g, 10 m hose package
  • Large display with built-in help; operated from the machine or the wire feed case
  • Digital I/O for automation and safety functions

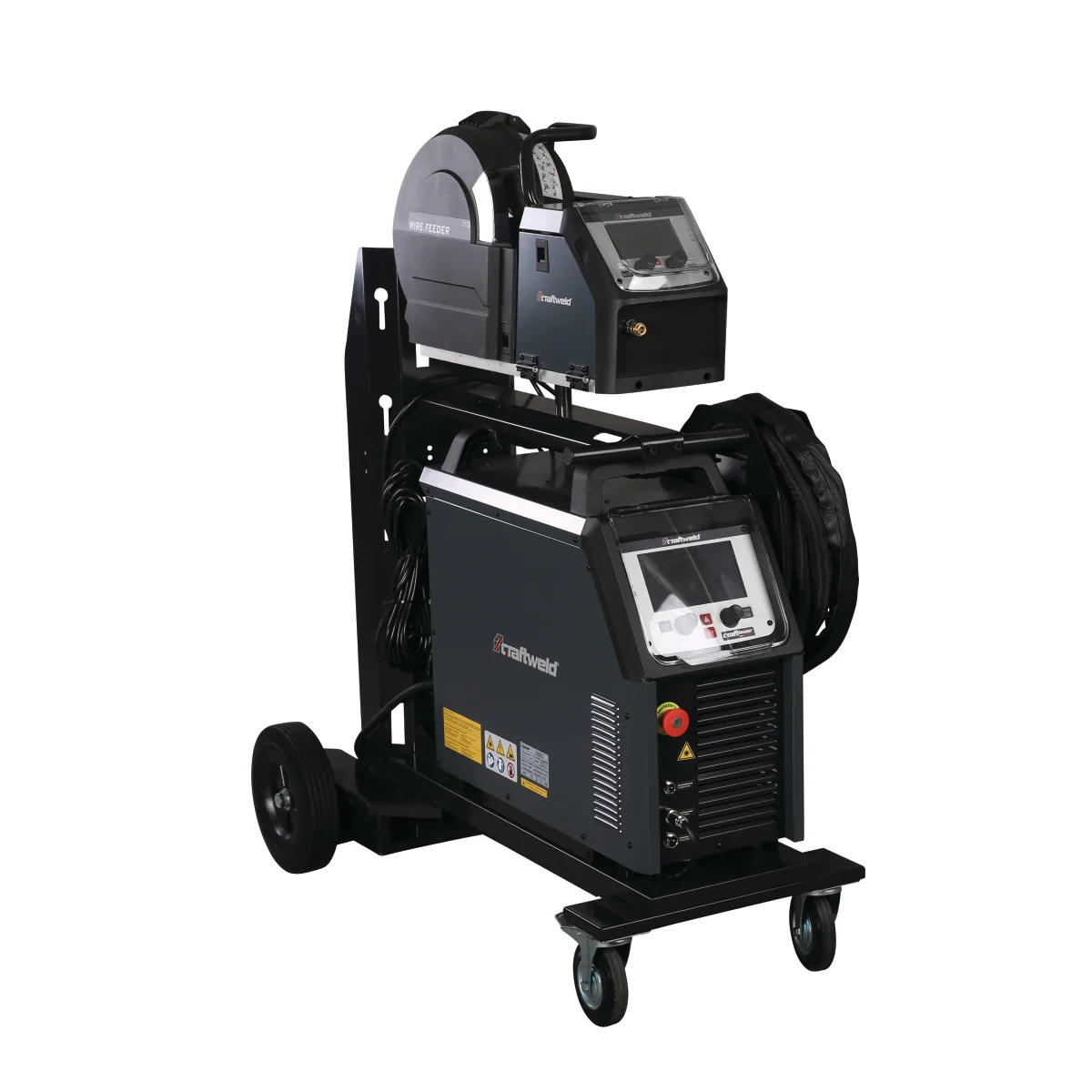

  • Machine with wire feed case, large LCD display and trolley

Safety

  • Two-channel emergency stop and two-channel access monitoring interface (door contact)
  • Key switch against unauthorised use
  • Two-channel fibre break detection, monitored QBH connection
  • Manual laser release at every start; two-hand torch trigger against accidental activation
  • Three-colour LED lamp for the laser cabin shows the machine status

The data comes from the product description. To clarify a parameter, call +359 882 477 388.

Delivery, warranty and service

Delivery by Pigeon Express

  • Products in stock: delivered on the same day or on the next working day after the order is confirmed.
  • Products not in stock: the delivery time is 7 working days, unless one of our staff specifies otherwise.
  • By Pigeon Express to an address or an office. The delivery price is shown in the order, according to weight and destination, and is paid to the courier on receipt.
Shipping weight
130 kg
Dimensions
750 x 600 x 1000 mm
Delivery terms

Warranty

“The warranty period is 24 months for all private individuals and 12 months for all legal entities, unless stated otherwise in the product description.”

Promash provides a warranty in accordance with the manufacturer's terms.

Frequently asked questions

Service and advice

Warranty and out-of-warranty service. Technical experts at your disposal for choosing a machine, commissioning and training.

Call: +359 882 477 388

Accessories for this machine

The original Stürmer accessories and options for Laser welding and cleaning machine Craft-Laser 1500 S, 230 V — add them to the order together with the machine.
